Additional Information

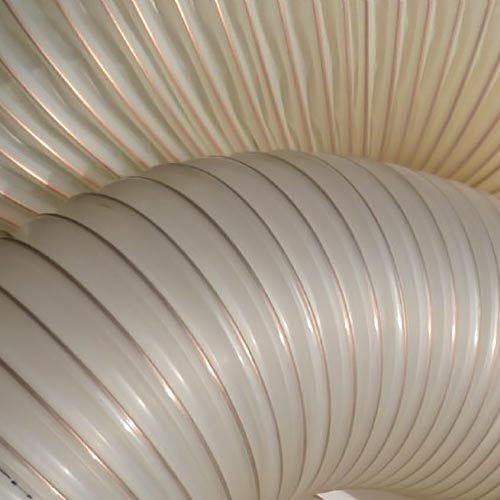

POLY LIGHT ANTI STATIC/ SMARTFLEX^R 0.4

We are currently changing over from our previous flex product to the new SMARTFLEX^R with added features! Ask for details when you place your order.

• Temperature Range: -40^o – 100^oC  (SMARTFLEX^R 125^o C short term)
• Material : Polyester Polyurethane (SMARTFLEX^R Polyether-Polyurethane)
• Wall Thickness: 0.4mm
• Colour: Clear with copper wire helix (SMARTFLEX^R clear/copper plated steel wire)
• Uses:
o Ideal for fumes, powders and fine sawdust, grass/leaf extraction/ good oil and petrol resistance
o Excellent flexibility and compressibility
o Good abrasion resistance
o Antistatic R<10⁸ Ohm –(SMARTFLEX^R 10⁹) normally no need to ground wire !
o Performs to TRBS 2153

SMARTFLEX^R is flame retardant ( DIN 4102/B1)

SMARTFLEX^R meets ATEX 2014/34/EU - pneumatic transport of combustible dusts ( inside ZONE 20/21/22)

SMARTFLEX^R meets TRBS 2153/TRGS 727and  discharge capability according to BGI 739-2 with spiral earthing

INFO POINT - with our ANTISTATIC Flex, the STATIC CHARGE flows through the wall MATERIAL itself unlike cheaper AS products which merely rely on a coating which wears off over time.
True Anti static flex should always be used where potentially explosive materials eg. sawdust, flour, sugar are being conveyed.

Click here for more information on max. Pressure and Vacuum (bar)

1 bar = 14.5038psi

1 bar = 100kpa (0.01 bar = 1kpa)

Our dia is measured as ID = inside diameter

When asking for a quote, 1 unit = 1 metre (flex is measured stretched)

CUT FLEX CANNOT BE RETURNED- PLEASE SELECT CAREFULLY
