Additional Information

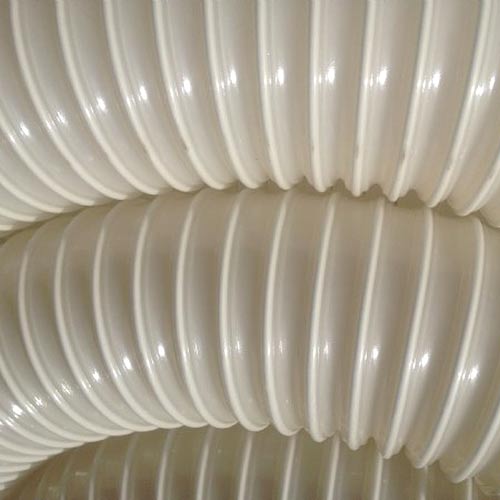

POLY HEAVY ANTISTATIC/ SMARTFLEX^R  1.0

We are currently changing over from our previous flex product to the new SMARTFLEX^R with added features! Ask for details when you place your order if you previously purchased our Poly Heavy AS flex.

• Temperature Range: -40^o – 100^oC (SMARTFLEX^R 125^O C short term)
• Material: Polyester Polyurethane (SMARTFLEX^R Polyether-Polyurethane
• Wall Thickness: <100mm 0.9mm/100-203mm 1.1mm/250mm and over 1.3mm (SMARTFLEX^R 1.0mm all dia.s)
• Colour: Opaque with cream wire helix (SMARTFLEX clear/copper plated steel wire)
• Uses:
o Ideal for suction and transport of abrasive materials
o Transport of granules, wood chip, grain
o Ideal for industrial sweepers, lawn mowers/leaf suction
o Smooth bore, excellent abrasion resistance inside - corrugated outside
o Antistatic R<10⁸ Ohm – normally no need to ground wire (SMARTFLEX^R 10⁹ )

SMARTFLEX^R is flame retardant ( DIN 4102/B1)

SMARTFLEX^R meets ATEX 2014/34/EU - pneumatic transport of combustible dusts ( inside ZONE 20/21/22)

SMARTFLEX^R meets TRBS 2153/TRGS 727and  discharge capability according to BGI 739-2 with spiral earthing

With our ANTISTATIC Flex, the STATIC charge flows throught the WALL MATERIAL itself, unlike cheaper AS products where the AS property is merely a coating that wear off with time.
True Anti static flex should always be used where potentially explosive materials eg. sawdust, flour, sugar are being conveyed

Click here for more information on max. Pressure and Vacuum (bar)

1 bar = 14.5038 psi

1 bar = 100kpa (0.01 bar = 1kpa)

Our dia is measured as id= inside diameter

When asking for a quote, 1 unit = 1 metre (flex is measured stretched)

CUT FLEX CANNOT BE RETURNED- PLEASE SELECT CAREFULLY
