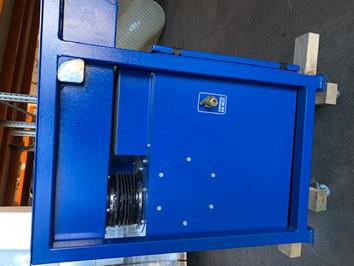

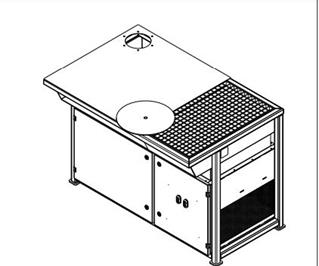

Welding Centre with Filtration
Additional Information
Ideal where industrial continuous welding is occurring
The all in one unit filters air pollutants via 2 stage filter system
- Heavy duty powder coated steel - work bench surface conductive, coated and corrosion resistant
- Fan 0.75kW , aluminium blades
- Choose 160mm dia Fume Arm metal, or flexi (purchased separately)
- Revolving table for small work can be included Dampers in table and fume arm, grounding connection available both sides
- 120kg, LxDxH 1230 x 844 x 863 mm
- 3 phase, 3 x 400V 50 Hz
Filtration :
Filter 1 - Metal mesh spark filter
Filter 2 - Cartridge - in stock for replacement as required
| Cartridge Type | Filter Type | Filter Class |
|---|---|---|
| Pre-filter | Metal | Coarse 30% (G2) |
| Main filter | Cartridge | Dust class M |
Technical Specifications
| Arm | 160mm dia |
|---|---|
| Arm reach | 2m |
| Nominal air flow | 1000m3/h |
| Power supply | 3 x 400 / 50 hz |
| Motor power | 1.1 kW |
| Noise level at 1m | 73 dB(A) |
Call 0508 69 38 28 for more information.
