The Oil Mist Filter has now a bigger air flow capacities (1.800 m3/h) and higher filtration efficiency (99.9% at 0.3µm) than the traditional oil mist filters.

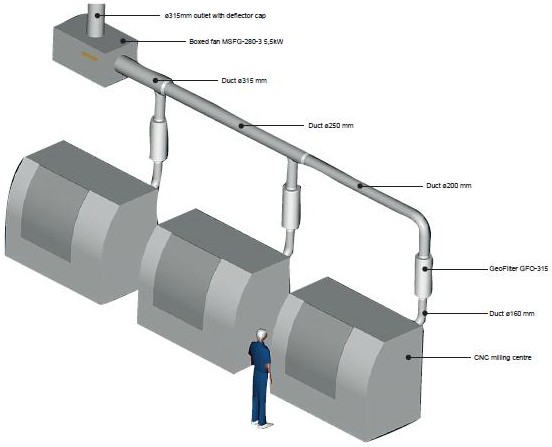

The Oil Mist Filter is used for filtration of oil mists from machines such as CNC lathing, milling and drilling machines, etc, which all use oil types such as cutting oil (regular, semi-synthetic or synthetic), or water based emulsions. The filtration efficiency can be up to 99.9% at 0.3µm.
Spill oil- Filtrated liquids can be recycled, back to the machine, saving money on expensive liquids.
Filter cartridge- The filter cartridge is a washable filter membrane capable of handling both oil and water saturated mists and smoke.
Filter cartridge change- the lock system on the filter makes for easy cleaning and replacing of the cartridge.

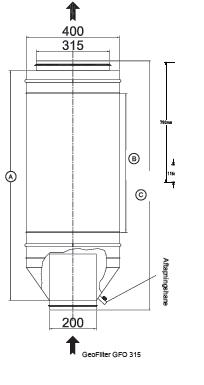

99.95 oil mist handling at 0.3µm. Max air flow: 1.000 m3/h. inlet dia=200mm, Discharge dia =350mm. A=988 B=595 C=1068
Call 0508 69 38 28 for more information.
