Additional Information

• High efficiency fans  up to 87%
• ATEX approved according to  2014/34/EU directive
• Supplied with EExE motor
• Supplied as standard with supporting  angels with vibration absorbers, inlet nozzle with mesh, and clamp for mounting the outlet flange
• Manufactured using 100% galvanised steel for optimum corrosion resistance

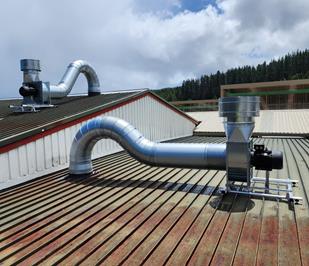

• Suitable for OUTDOOR  installation eg on ROOF  or on a wall
• Centrifgal fan with closed backward curving B-wheel and directly driven flange motor
• 3 x 400V,  3 phase
• Dust should not be sticky
• Dust volume from extracted air  should not exceed 12g / m³
• Size of dust particles  should not exceed 6mm³
