Blastgates Galv

Blastgates Galv

Blastgates Galv


Don't loose suction ! Low cost but robust, these manually operated shut off valves are stocked 80-550mm N.B. We are currently doing a running change to screw type shutter - see below






Additional Information

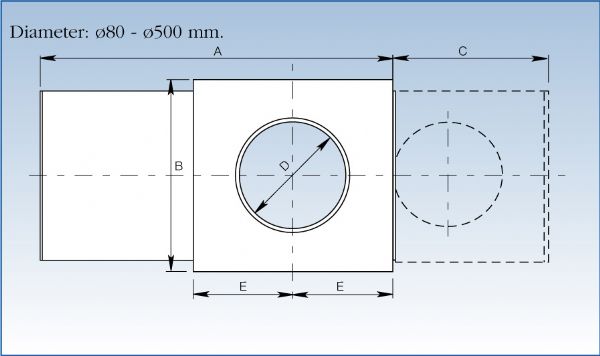

Manual Blastgates

Blastgates are designed to close off the airflow from one duct at a time, allowing the remaining duct system to get the benefit of the increased suction available.
Manual Blastgates are closed by hand, but rely on staff remembering to re-open the closed gate when the machines on that line are turned back on.

Currently our range is changing from the product shown to a screw type - see above (click to expand). The sliding shutter takes up less space on the new type. Ask for details if this affects your required dia.

Manual Blastgates for Galvanised range
• Thickness gate 1.25mm up to BG200
• Thickness gate 1.5 BG225 and over
